Fast peak detector (CB20893E)

Details
Written by: Newton C. Braga

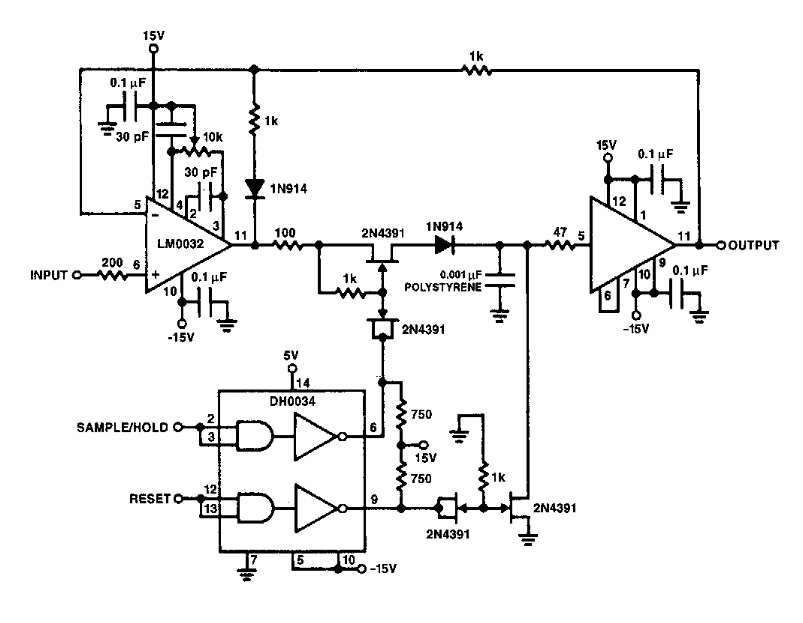

This circuit was found in a National Semiconductor manual from the 1980s. The integrated circuits used are equivalent. Note the need for a symmetrical power supply.
