AC Instrumentation amplifier (CB20987E)

Details
Written by: Newton C. Braga

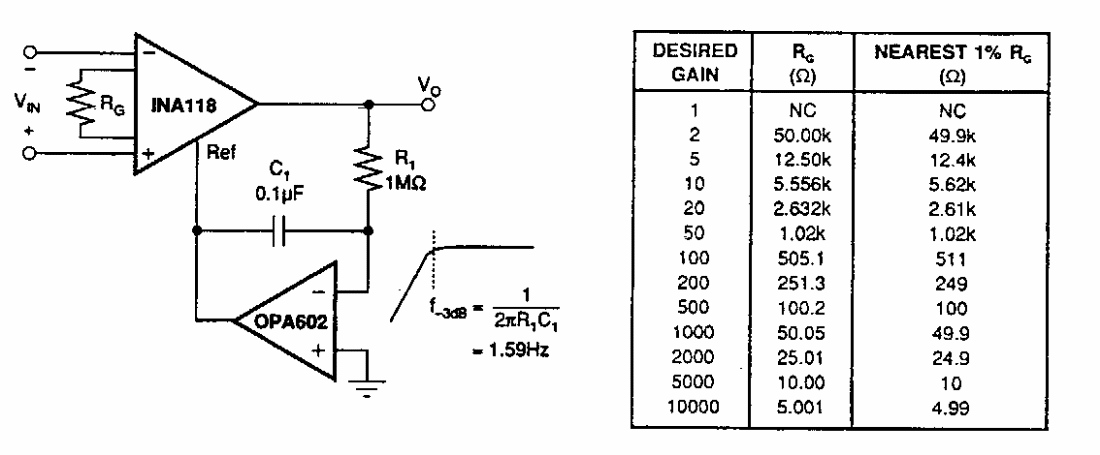

This amplifier was found in Burr-Brown documentation from the 90's. The gain can be programmed by resistor Rg as per the table given in the diagram. The power supply must be symmetrical.






| Clique na imagem para ampliar |
