Multiple Alarm (CB20628E)

Details
Written by: Newton C. Braga

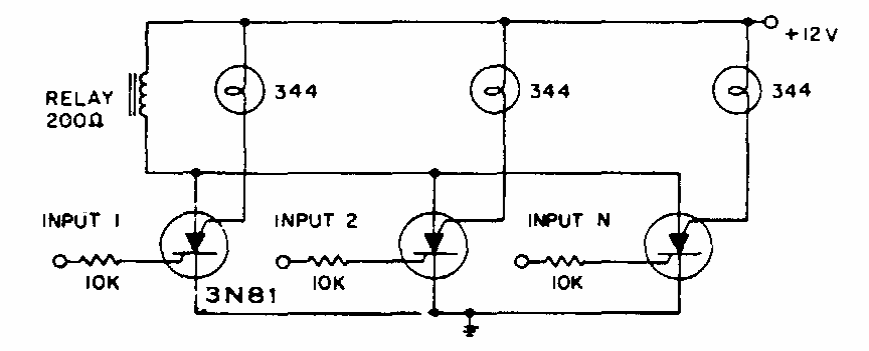

We found this circuit in a 1985 technical publication. The circuit uses PUTs to drive lamps. Relays or LEDs can be used with the voltage according to the supply.
