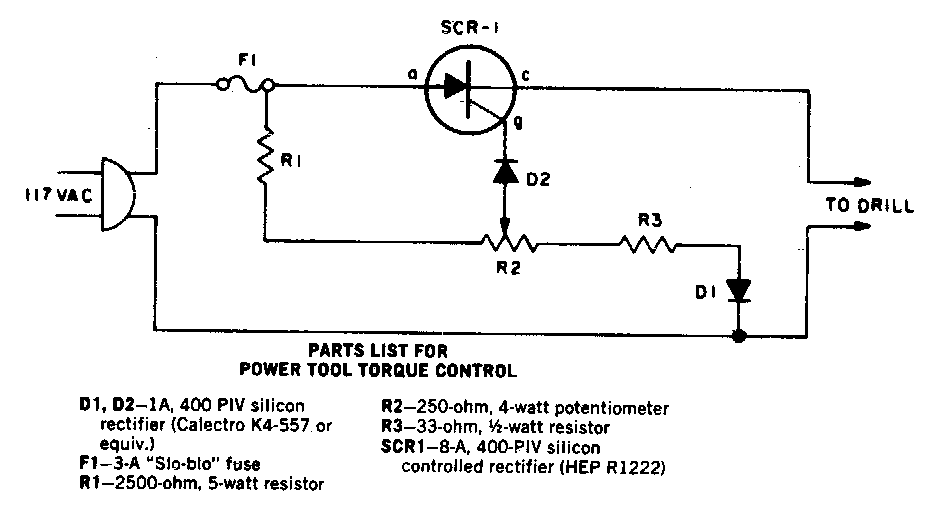

Found in American documentation from the 1970s, this circuit can be designed based on a modern SCR, such as the TIC106. The SCR must be provided with a heat sink.
| Clique na imagem para ampliar |
Electric Tool Torque Control (CB20794E)
- Details
- Written by: Newton C. Braga
