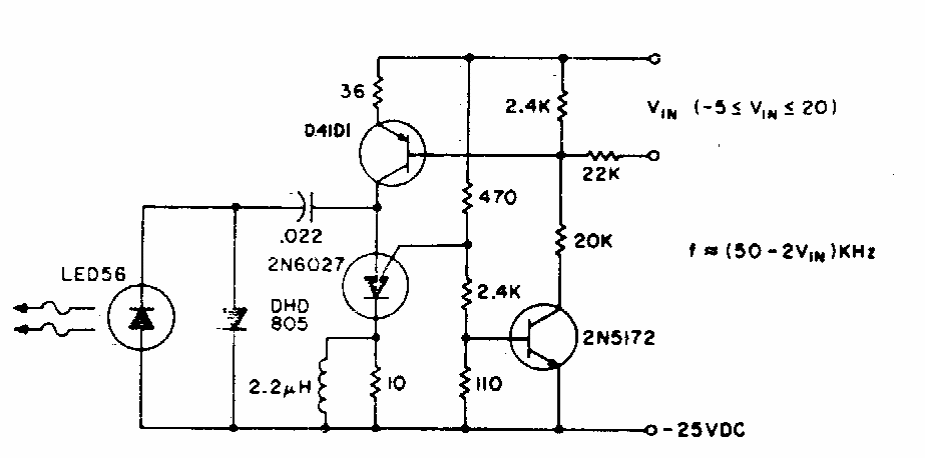

This circuit operates at a frequency of 80 KHz and modulation up to 60 kHz. The circuit is from 1980s documentation. The PUT is an uncommon component today.
| Clique na imagem para ampliar |
Optical FM Transmitter (CB20702E)
- Details
- Written by: Newton C. Braga
