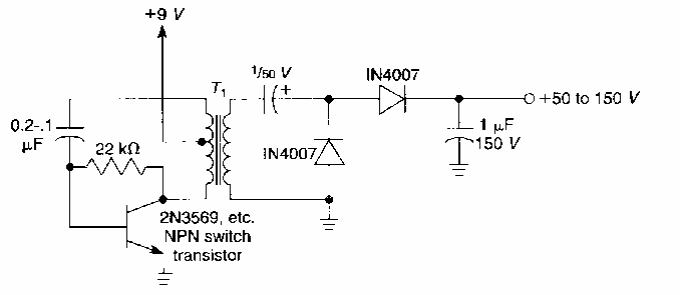

This circuit was found in American documentation from the 90's. The transformer determines the output voltage. The transistor must be equipped with a heat sink.
| Clique na imagem para ampliar |
DC to DC converter (CB20667E)
