Passive tone control (CB20803E)

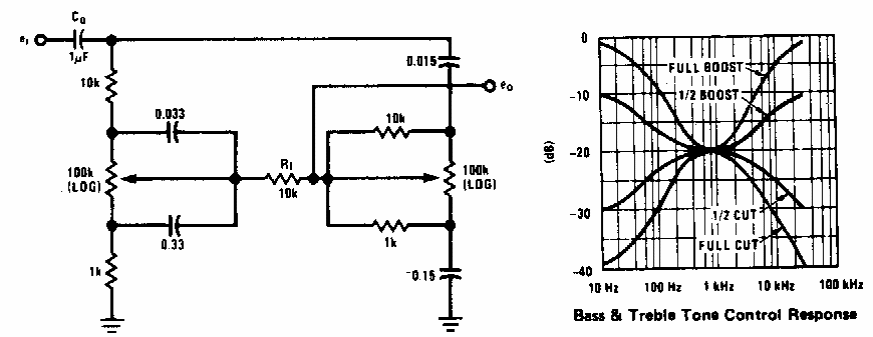

This tone control circuit can be added to any active amplifier configuration. The performance curve is given next to the diagram.

| Clique na imagem para ampliar |
