RF signal level indicator (CB20966E)

Details
Written by: Newton C. Braga

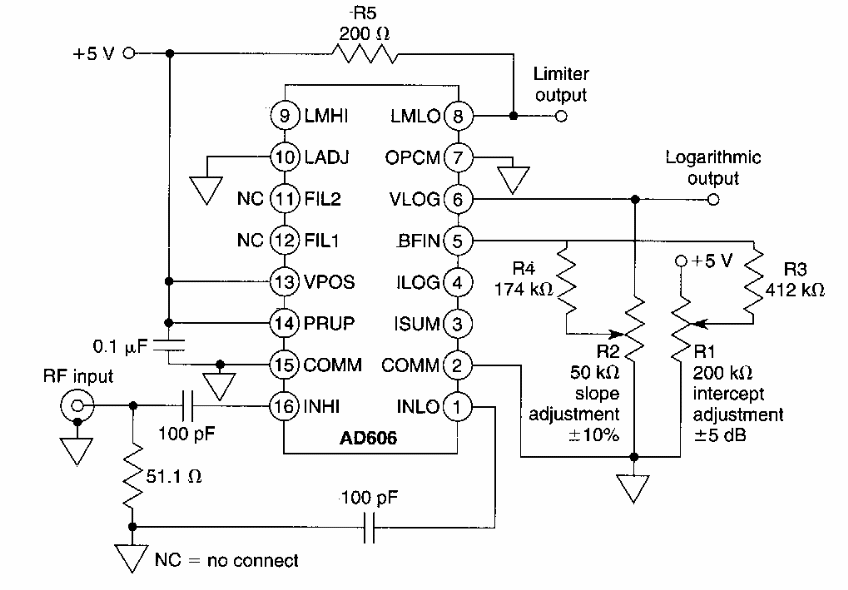

This circuit was found in old documentation from Analog Devices. The integrated circuit is from the era. It has two settings and operates at frequencies up to 50 MHz.




| Clique na imagem para ampliar |
