Electronic lock (CB20926E)

Details
Written by: Newton C. Braga

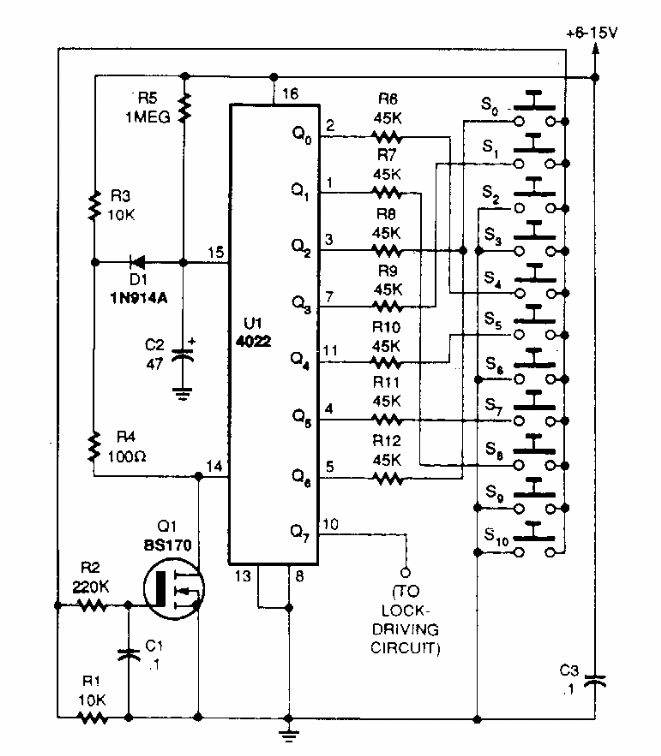

This CMOS circuit was found in a Popular Electronics from the 80's. The circuit consists of a counter that has its output activated when the selected key combination is pressed.




| Clique na imagem para ampliar |
