High frequency generator (CB20615E)

Details
Written by: Newton C. Braga

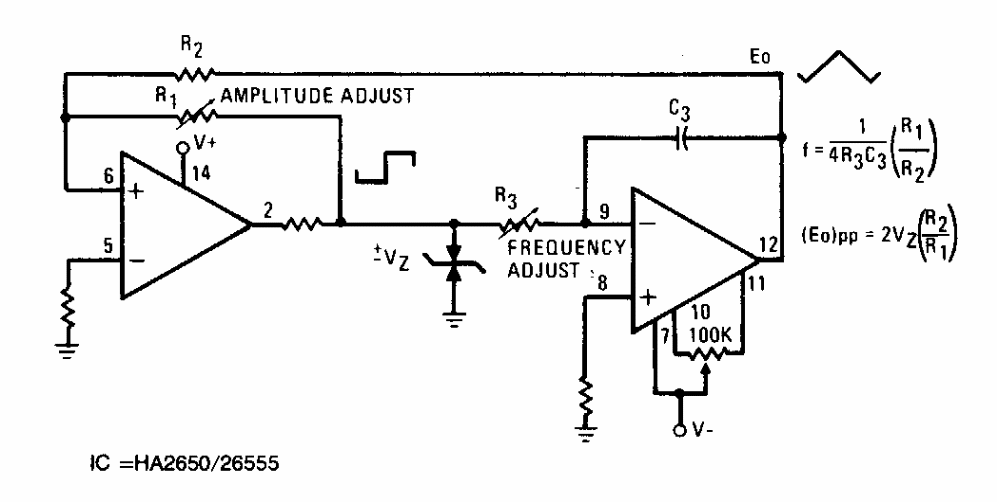

The integrated circuits used in this oscillator are not very common today, as we obtained it in documentation from the 1980s. The circuit must be powered by a symmetrical source.




| Clique na imagem para ampliar |
