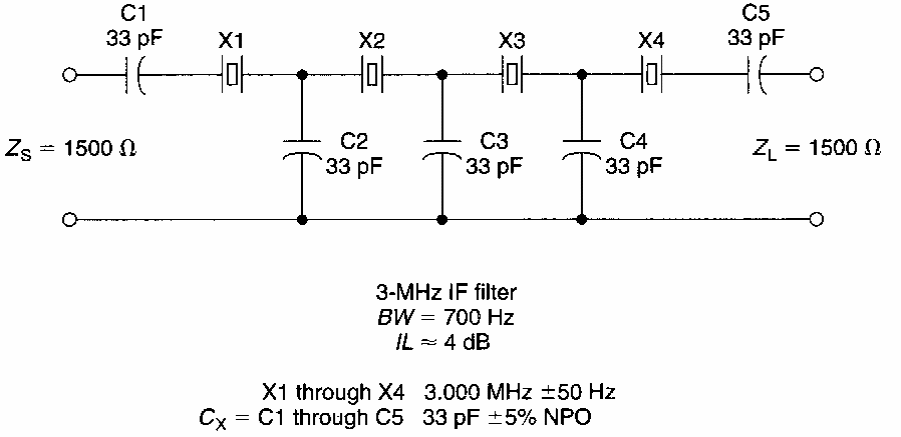

Found in American documentation from the 1980s, this circuit has a throughput of 700 Hz and a flat response of 400 to 500 Hz, with crystals of 3 MHz. Crystals of 2 to 15 MHz can be used.
| Clique na imagem para ampliar |
Short wave receiver IF filter (CB20932E)
