Small Spy FM (CB20407E)

Details
Written by: Newton C. Braga

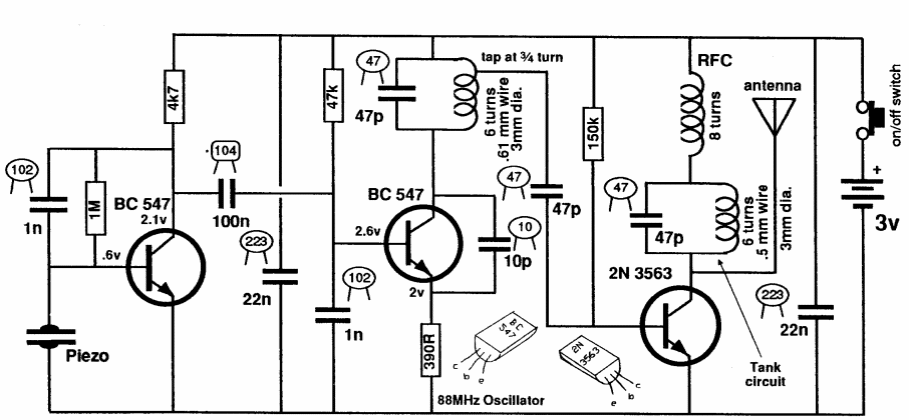

Using a sensitive crystal or ceramic microphone, this circuit can pick up faint sounds through a wall. The circuit has a good range given the use of an RF amplifier transistor.
