Function generator (CB20621E)

Details
Written by: Newton C. Braga

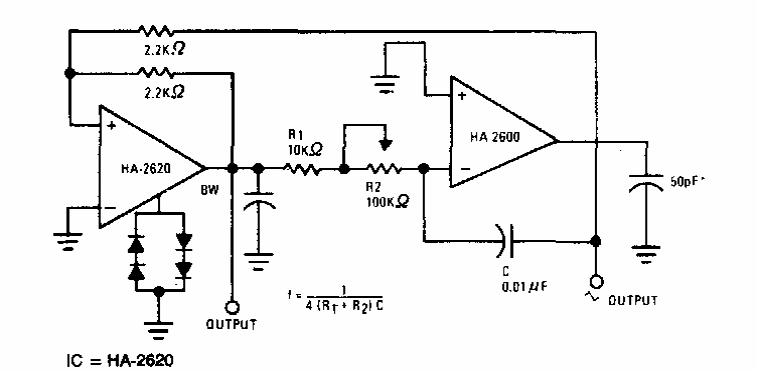

This circuit of the 80s makes use of an operational one of the time. It can be designed with modern operationals and must use a symmetrical power supply.




| Clique na imagem para ampliar |
