Time extender for courtesy light (CB20660E)

Details
Written by: Newton C. Braga

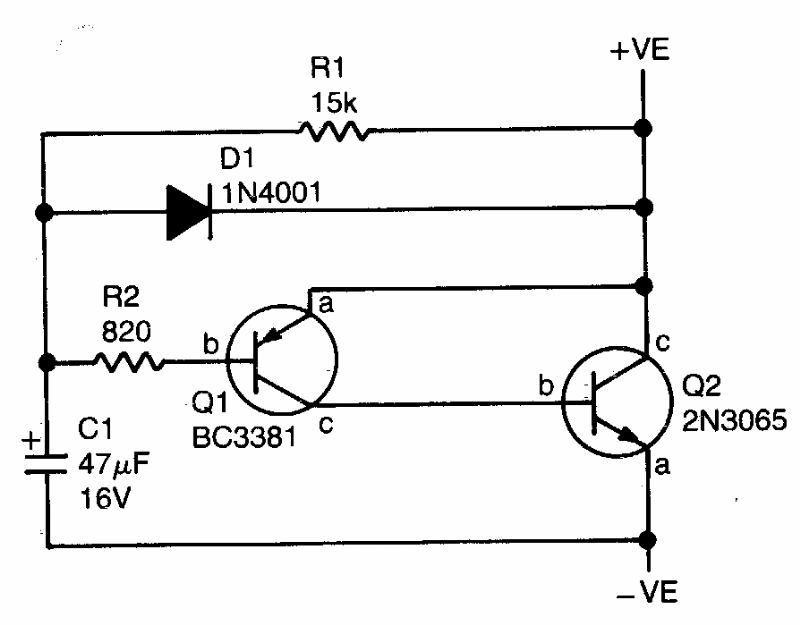

Found in a documentation from the 70s, this circuit causes the courtesy light of the car to remain on for an additional time after the doors are closed. The time depends on C1.




| Clique na imagem para ampliar |
