Triangular and square generator (CB20618E)

Details
Written by: Newton C. Braga

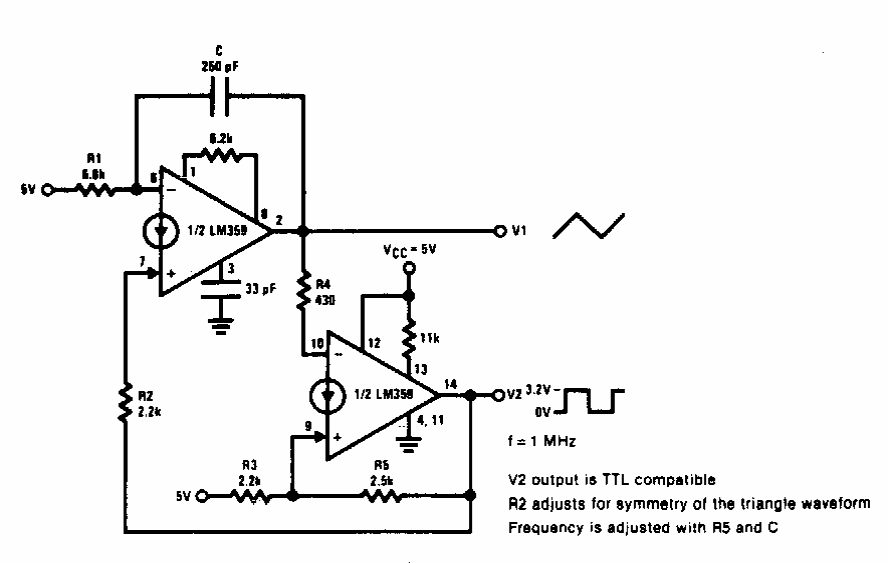

This circuit from the 80's makes use of two transconductance operationals of the time. Modern equivalents can be used. The circuit does not need to be powered by a symmetrical source.




| Clique na imagem para ampliar |
