Laser Pulser (CB20745E)

Details
Written by: Newton C. Braga

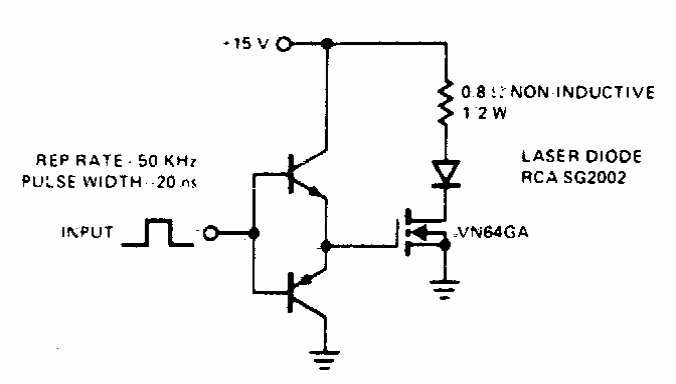

This circuit can modulate a laser rate at frequencies of 50 kHz. We found the old documentation. The bipolar transistors can be the BD135 and 136 and the FET admits equivalent.
