9V power source (CB21164E)

Details
Written by: Newton C. Braga

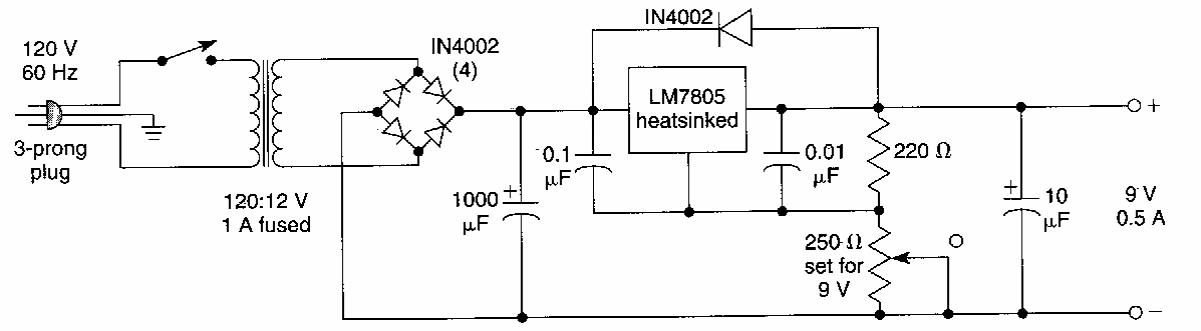

This simple circuit with a 5V regulator was found in an American documentation from the 90's. The output voltage is adjusted in a trimpot.
