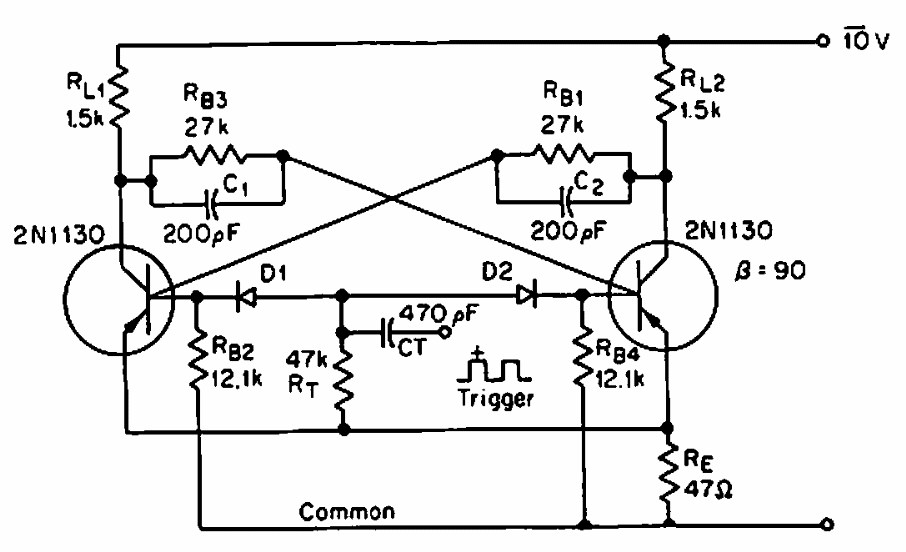

Found in American documentation, this circuit can make use of modern equivalent transistors. The circuit triggers with positive pulses.
| Clique na imagem para ampliar |
Base triggered multivibrator (CB21471E)
- Details
- Written by: Newton C. Braga
Found in American documentation, this circuit can make use of modern equivalent transistors. The circuit triggers with positive pulses.
