1 kHz oscillator (CB21934E)

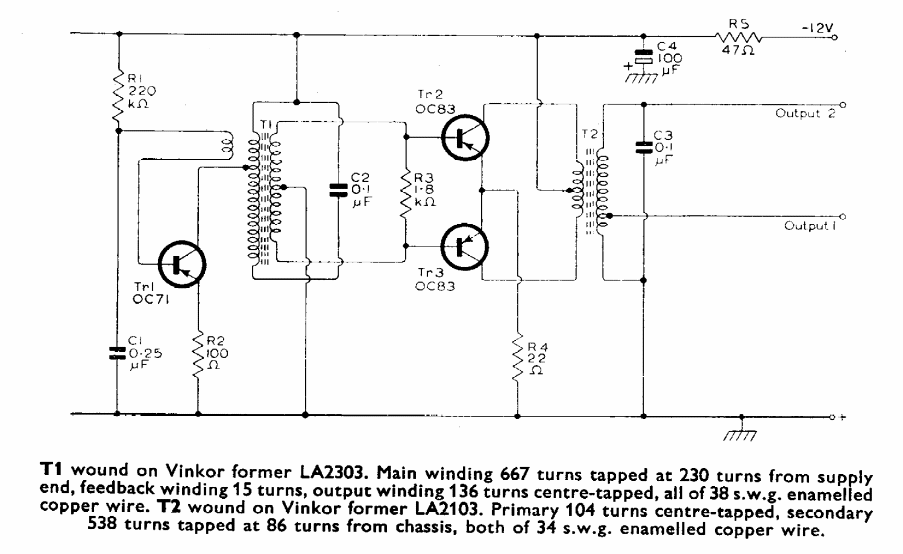

This circuit was taken from the 1960's Mullard Transistor Manual. Information about the coils is given along with the diagram.

| Clique na imagem para ampliar |

High Input Voltage Regulator (CB13050E)
The 78XX series voltage regulator integrated circuits do not support an input voltage greater than...
Multimeter Circuit (CB23623E)
This is the complete circuit of a multimeter using a 50 uA instrument with a 2k coil. The circuit...
1kHz Double T Oscillator (CB10957E)
This circuit came out in a Popular Electronics from December 1995. It is a double T configuration that...
