Efficient trigger (CB21470E)

Details
Written by: Newton C. Braga

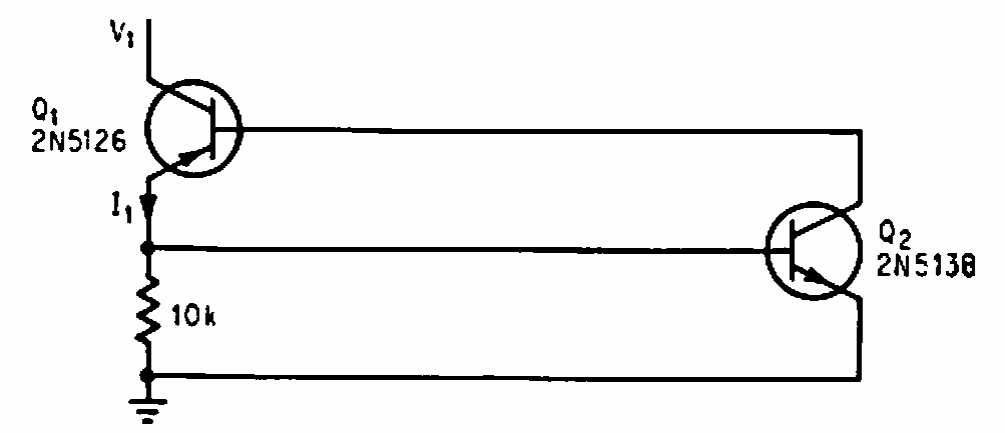

This two-transistor regenerative switch works as an excellent trigger for SCRs and other devices that need sharp pulses. The circuit is from an old documentation.
