Noise limiter (CB21107E)

Details
Written by: Newton C. Braga

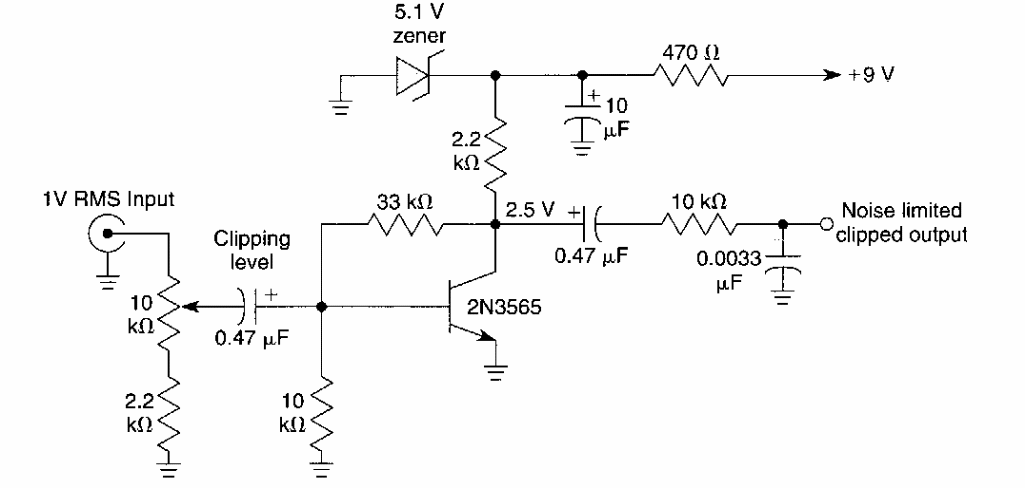

This circuit was obtained from an American documentation from the 90's. The transistor can be a low noise general purpose like the BC549.




| Clique na imagem para ampliar |
