3 kW Control (CB21382E)

Details
Written by: Newton C. Braga

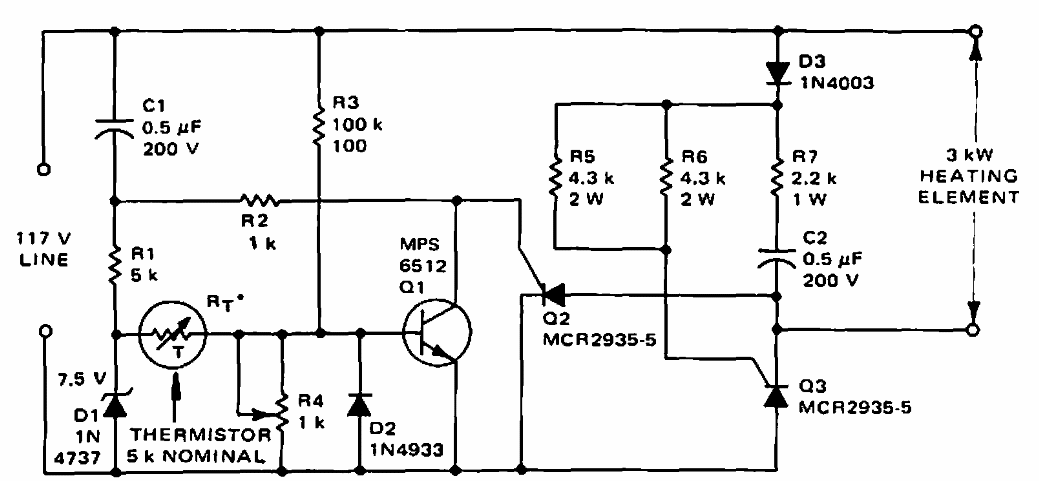

This heating element control with up to 3 kW was obtained from an old American documentation. SCRs must be load-compliant, and transistors can be current equivalents.




| Clique na imagem para ampliar |
