Up to 1 Hour timer (CB21424E)

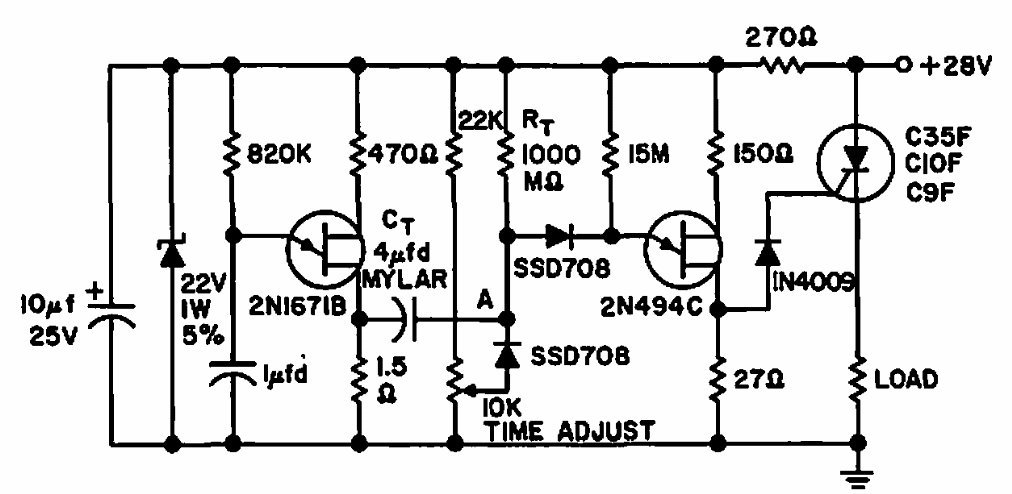

This circuit was found in a 1960s General Electric unijunction transistor manual. The circuit can use any unijunction and the SCR is load sensitive.

| Clique na imagem para ampliar |
