Power control with triac (CB21467E)

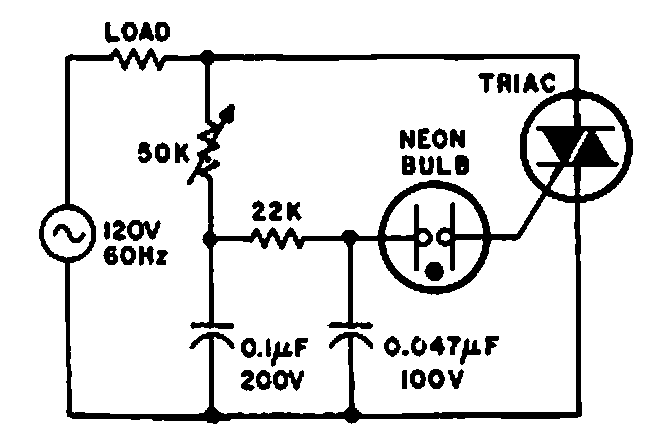

Found in a 1967 RCA power manual, this circuit uses an ordinary neon lamp to fire a triac. The circuit is for the 110V network.

| Clique na imagem para ampliar |

Audio Visual Thermometer (CB18469E)
This circuit was found in a 1974 publication. It provides a tone indication of the temperature sensed by...
DC Motor Speed Control (CB17401E)
This is a simple rheostat circuit for motor control that works with voltages from 6 to 12 V. The...
1 MHz Colpitts Clock (CB6469E)
This circuit with TTL compatible output was found in a 1968 US documentation. The circuit is...
