Sawtooth generator (CB21228E)

Details
Written by: Newton C. Braga

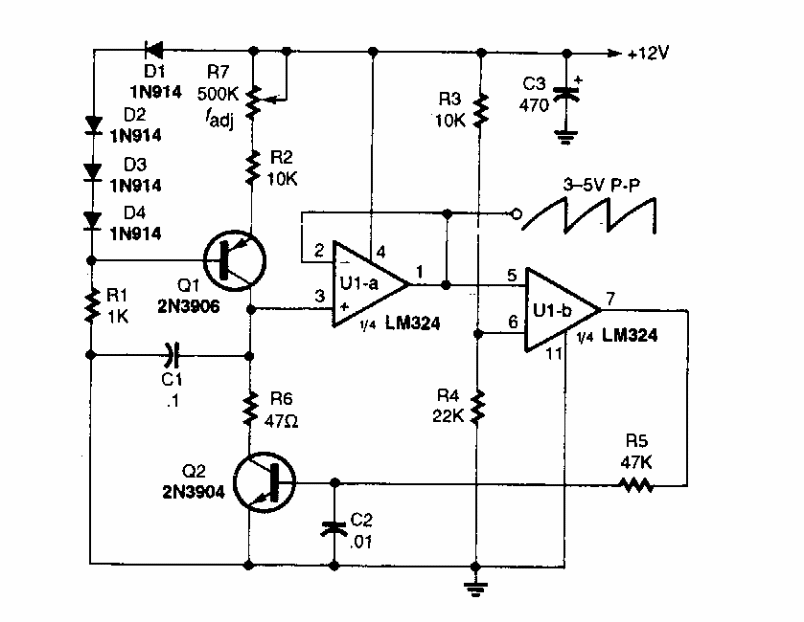

Found in Popular Electronics from the 90s, this circuit generates signals in a frequency range set to R7 and basically determined by C1. Operational and equivalent transistors can be used.




| Clique na imagem para ampliar |
