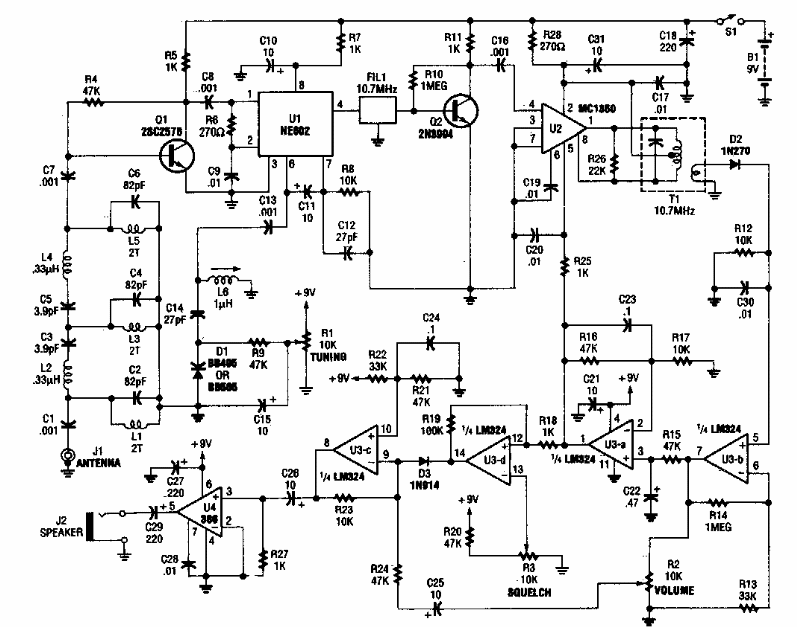

VHF Receiver (CB21204E)

Found in an older Radio Craft, this circuit covers the aerial band from 118 to 136 MHz. No information is given about the coils.

| Clique na imagem para ampliar |
