10-hour timer with FET (CB21405E)

Details
Written by: Newton C. Braga

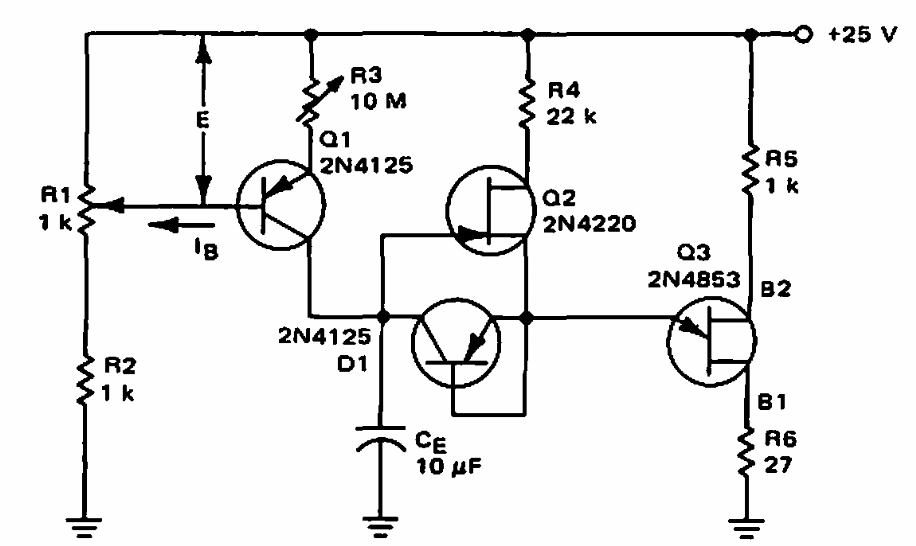

This circuit was found in a Motorola documentation from 1968. The circuit makes use of FETs and bipolar of the time and can be applied to modern equivalents.
