9 kHz Astable (CB21831E)

Details
Written by: Newton C. Braga

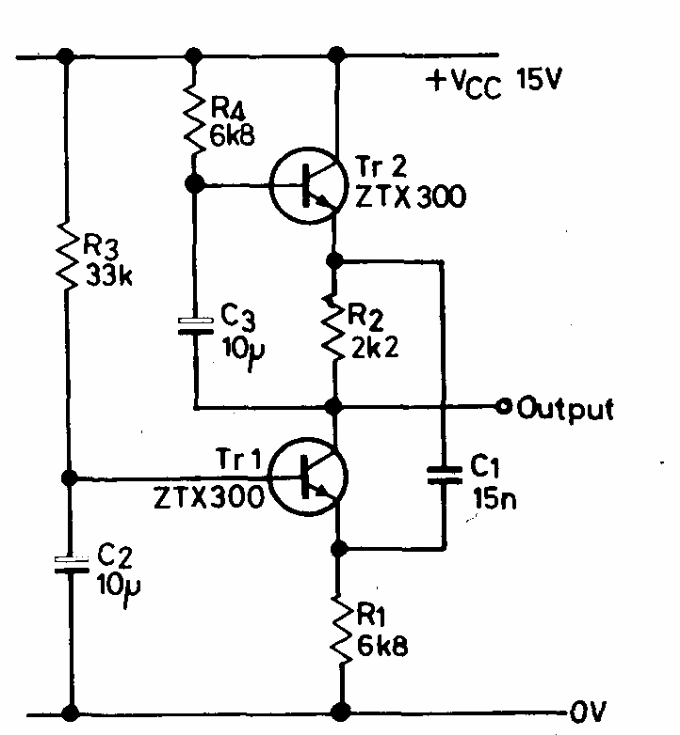

The circuit is from Ferranti's 1974 transistor manual. Transistors are general purpose types, and the output waveform is rectangular. Components can be changed to other frequencies.
