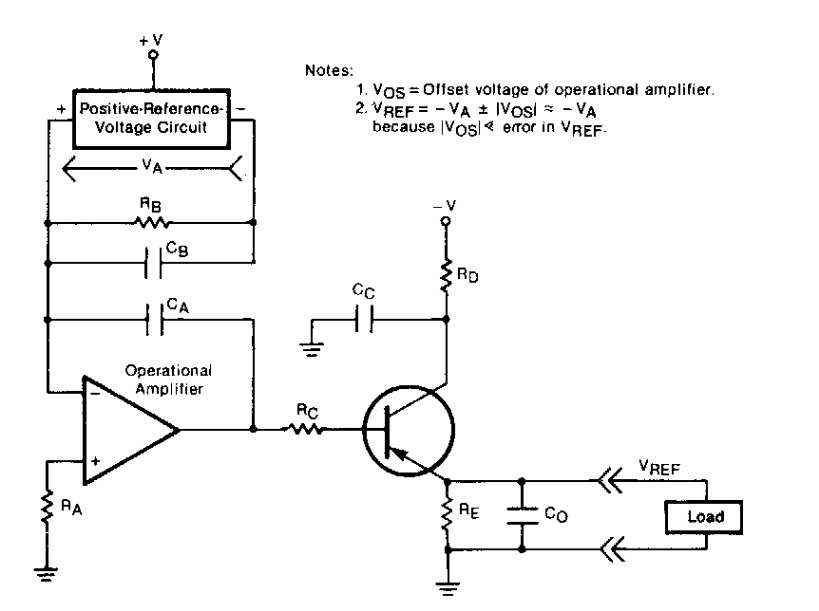

Negative voltage reference (CB21040E)

This circuit was found in NASA documentation from the 1990s. The circuit provides a precision reference voltage. Component values were not provided.

| Clique na imagem para ampliar |
