Dual temperature monitor (CB21377E)

Details
Written by: Newton C. Braga

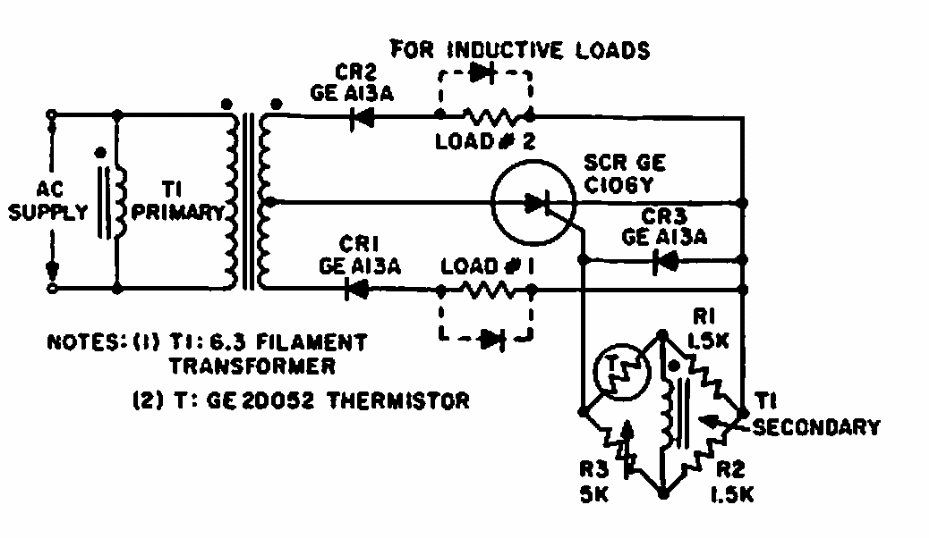

This circuit was obtained from a 1967 GE SCR manual. It is intended for controlling relays responding to a decrease or increase in temperature.
