Analog Frequency Counter (CB21848E)

Details
Written by: Newton C. Braga

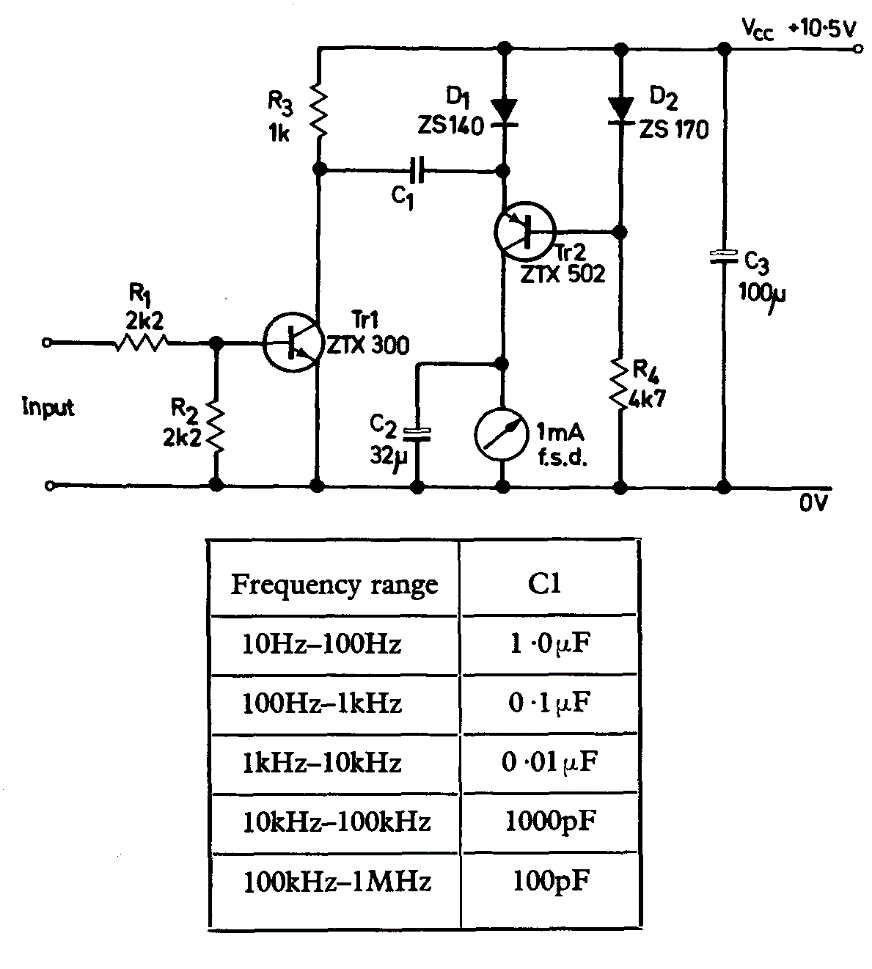

We found this circuit in Ferranti's 1974 transistor manual. The components are from the period. The table gives the value of C1 for different frequency ranges.




| Clique na imagem para ampliar |
