Astable 555 (CB21101E)

Details
Written by: Newton C. Braga

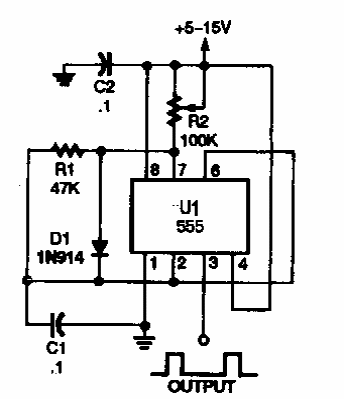

This 50% duty cycle configuration was found in a Popular Electronics from the 1990s. The operating frequency is given by C1.
