SCR Slave (CB21366E)

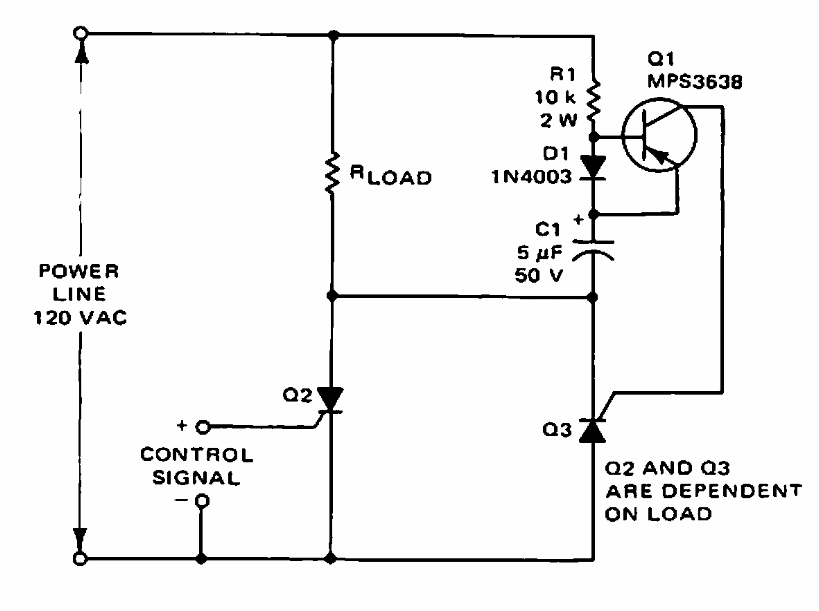

Found in a 1968 GE documentation, this circuit is intended to drive an SCR from a control signal.

| Clique na imagem para ampliar |
