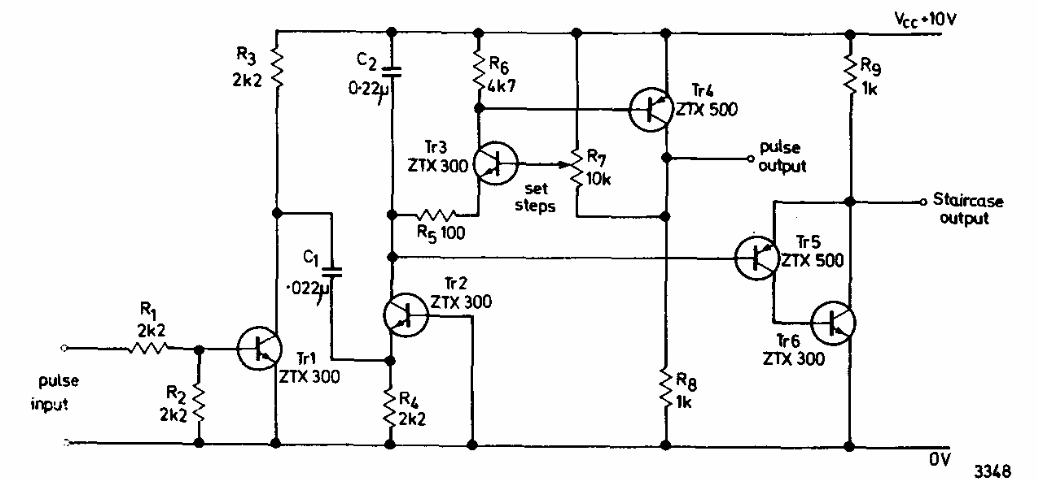

Staircase generator (CB21847E)

Details
Written by: Newton C. Braga



This circuit was found in Ferranti's 1974 transistor manual. The transistors are from the period and the frequencies generated are between 50 Hz and 2 kHz.




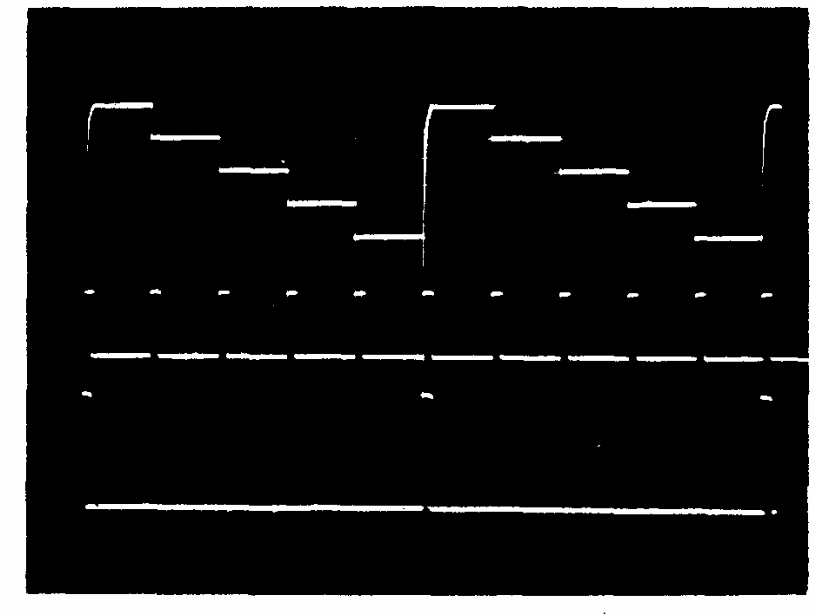

| Clique na imagem para ampliar |






| Clique na imagem para ampliar |
