Rail indicator for modeling (CB21084E)

Details
Written by: Newton C. Braga

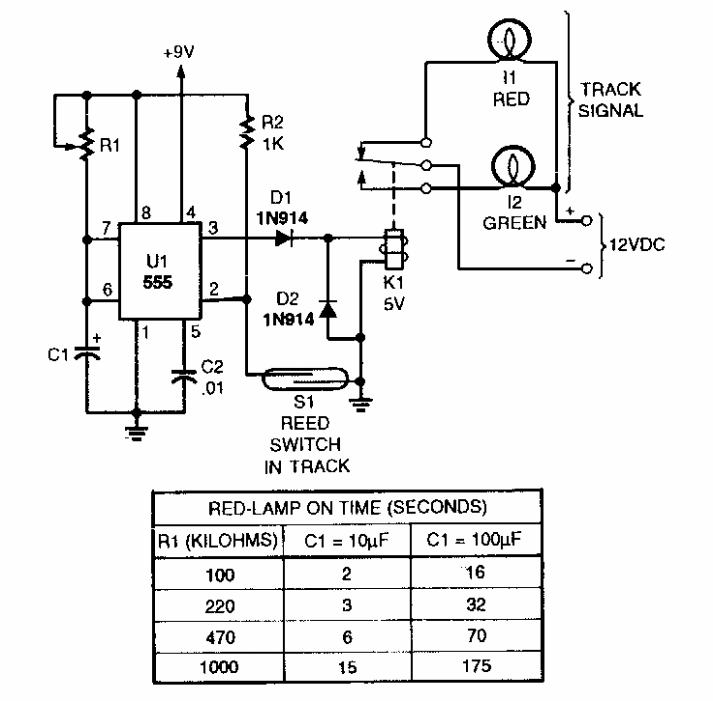

Found in Popular Electronics from the 90s, this circuit uses a reed switch on the rails as a sensor. Instead of lamps, in a modern version, LEDs can be used.
