50W Inverter (CB21485E)

Details
Written by: Newton C. Braga

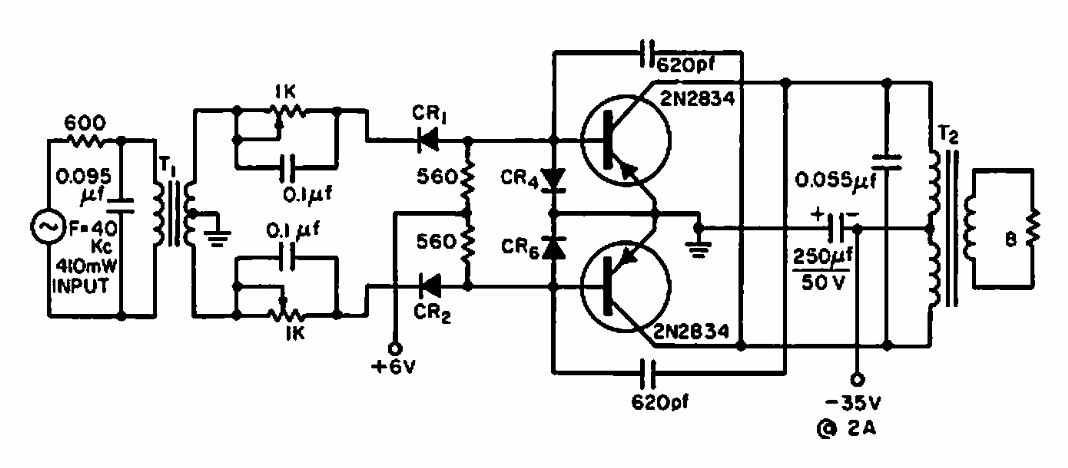

This circuit for a frequency of 40 kHz was found in an old Electronic Design. There were no constructive data for the transformer used in the output.
