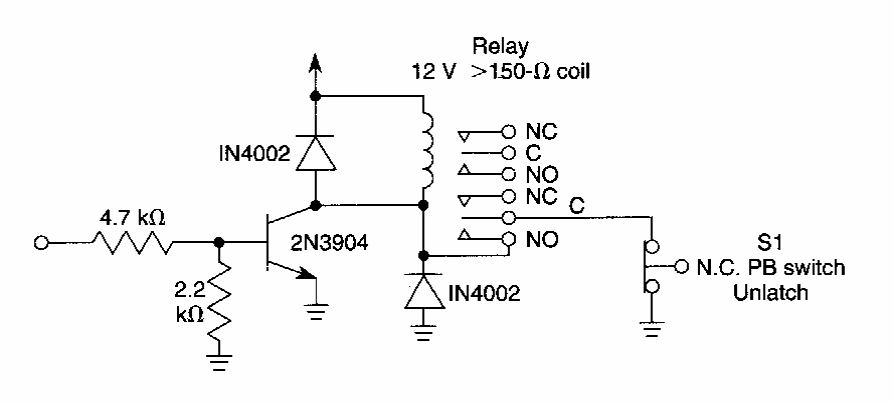

Locked relay driver (CB21222E)

This circuit can be used as a shield for microcontrollers. The relay is power compliant, and the transistor is general purpose.
