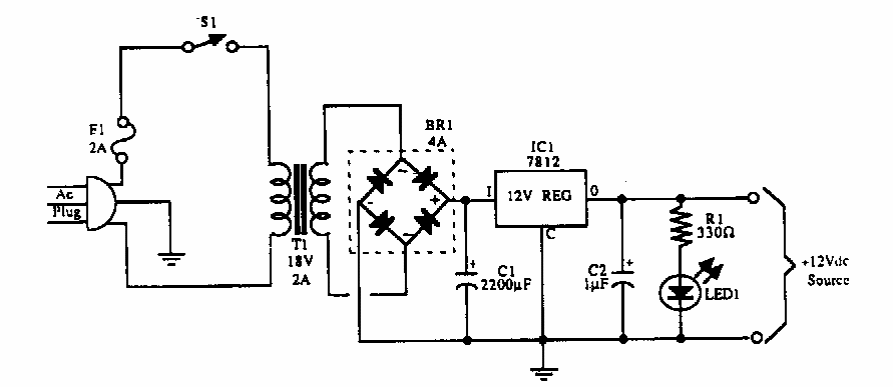

12V Regulator (CB21178E)

Found in an American documentation, this regulator supplies a current according to the integrated circuit. In this case, this current is 1 A.

| Clique na imagem para ampliar |
