Ramp generator with correction (CB21844E)

Details
Written by: Newton C. Braga

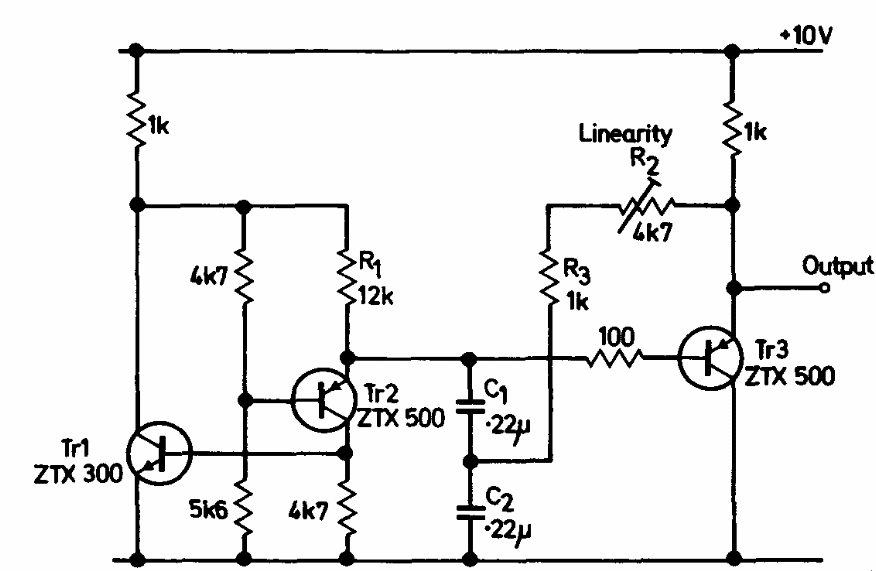

This circuit has a correction or linearity adjustment. We found it in Ferranti's transistor manual from 1974. Transistors are general-purpose types at the time.




| Clique na imagem para ampliar |
