Locked relay (CB21220E)

Details
Written by: Newton C. Braga

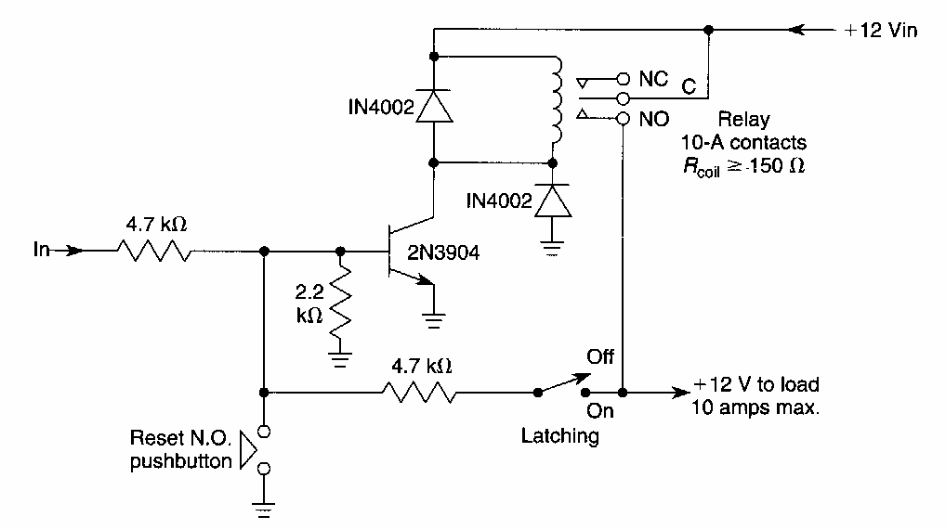

This circuit can be used as a lockable shield. A pulse activates the relay that remains on even after the pulse disappears. The transistor is general purpose.
