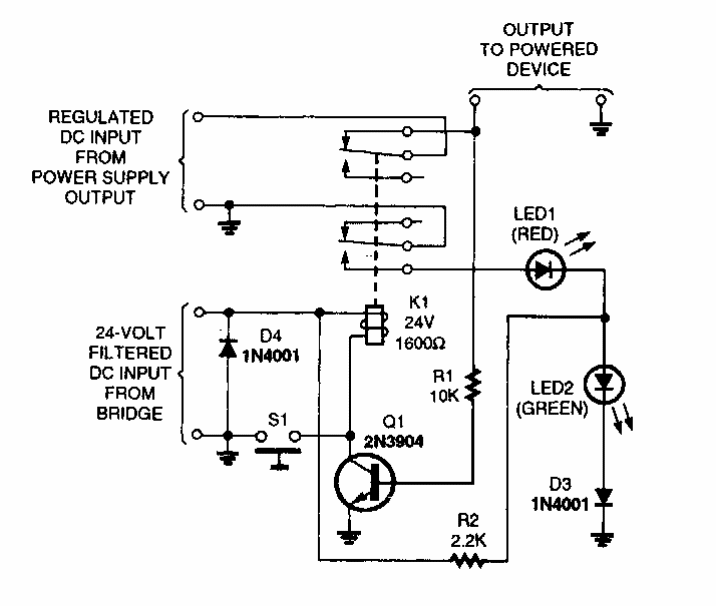

Short circuit protection circuit (CB21197E)

This circuit was taken from a Popular Electronics from the 1990s. The circuit triggers a relay that disconnects the load.
