Fast trigger (CB21482E)

Details
Written by: Newton C. Braga

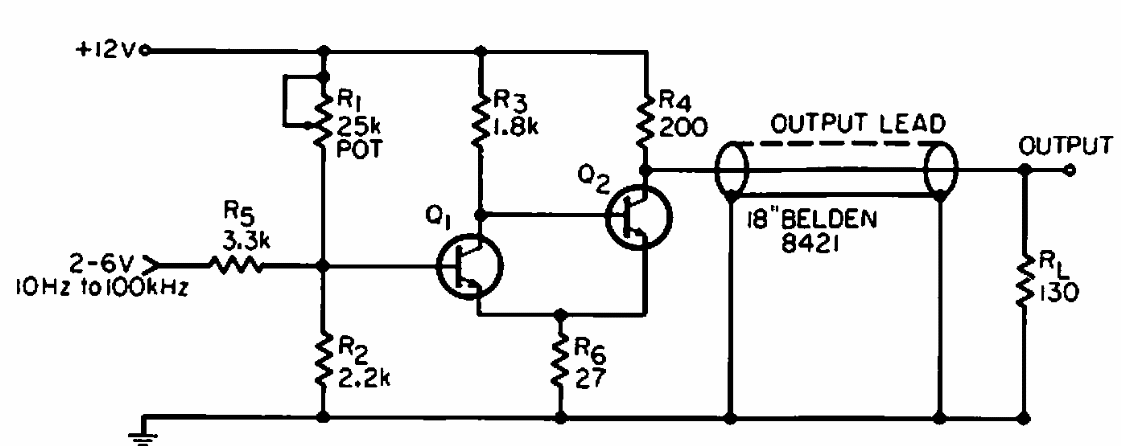

This fast Schmitt trigger operates at frequencies from 10 Hz to 100 Hz, with very short rise time. The circuit is from an American documentation from 1968.




| Clique na imagem para ampliar |
