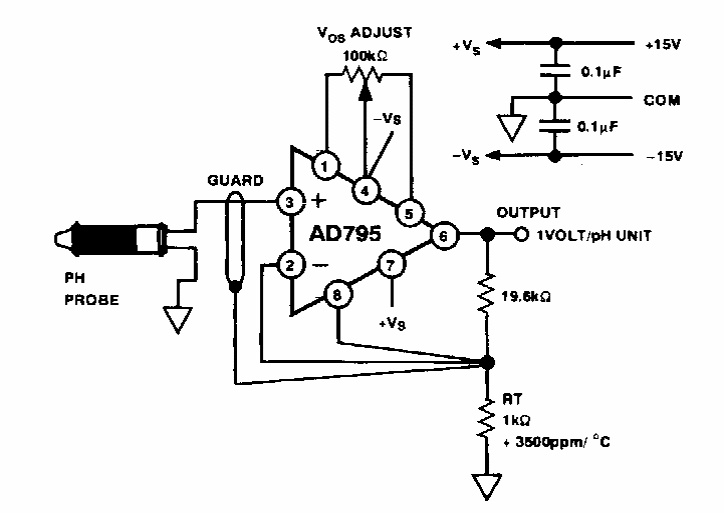

pH meter (CB21196E)

This circuit was found in documentation from Analog Devices. The circuit is based on an AD795 and a commercial pH probe.

| Clique na imagem para ampliar |
