Transmitter with Vox (CB21881E)

Details: Written by: Newton C. Braga

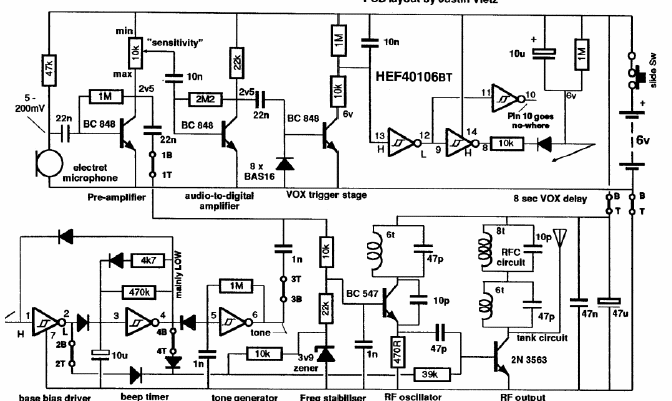

We found this circuit in an Australian documentation from 1991. The circuit is suitable for SMD mounting thus making it very small. The circuit was sold in a kit at the time.
