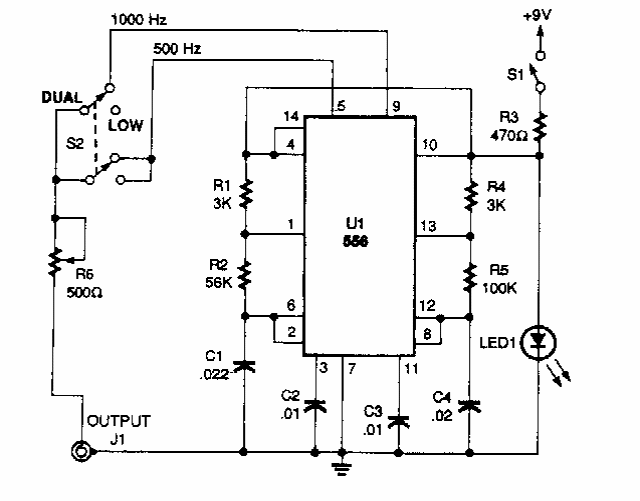

Found in Popular Electronics from the 90s, this circuit generates two tones that are selected by a switch. The circuit is used for testing audio equipment.
Dual tone generator (CB21080E)
- Details
- Written by: Newton C. Braga
Found in Popular Electronics from the 90s, this circuit generates two tones that are selected by a switch. The circuit is used for testing audio equipment.
