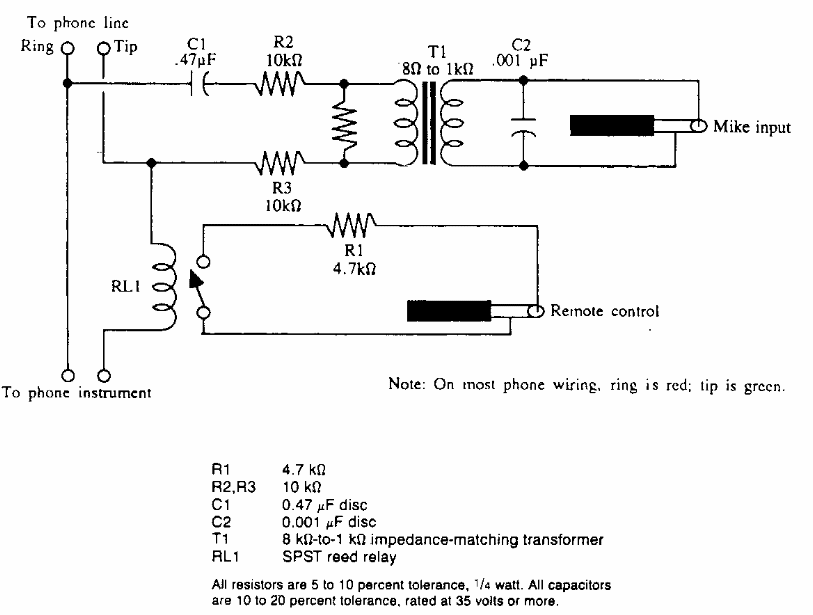

Telephone recording circuit (CB21270E)

Found in an American documentation, this circuit shows how an interface should be made for recording telephone conversations with quality and safety.

| Clique na imagem para ampliar |
