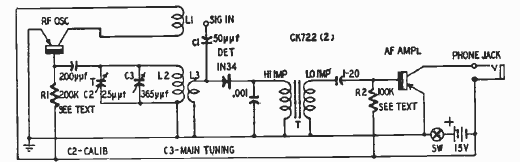

This circuit was found in a book on transistors from 1954. It works by the beat that is detected by the earphone. When the measured frequency equals the generated frequency, the earphone beat is zero. Thus, C3 is calibrated for a frequency scale, according to coils L2 and L3.
