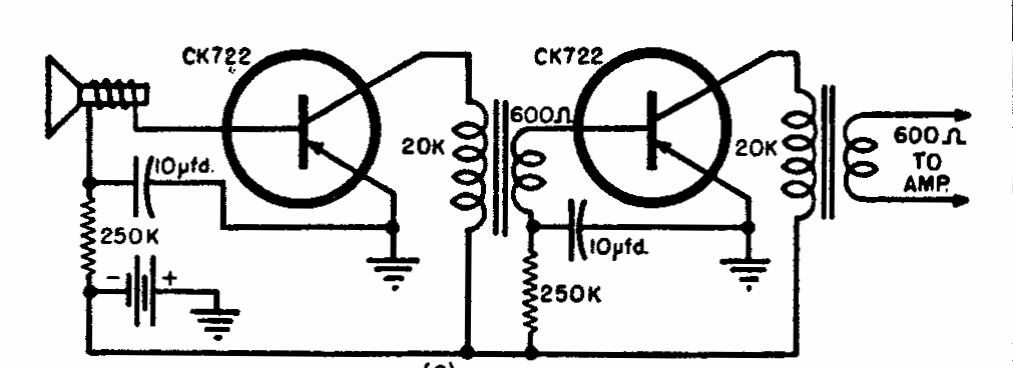

Low impedance preamp 3 (CB21896E)

Like the previous circuits, this one uses a small speaker as a microphone and has two amplification stages with 600-ohm output.

| Clique na imagem para ampliar |
