Low noise 5V source (CB21170E)

Details
Written by: Newton C. Braga

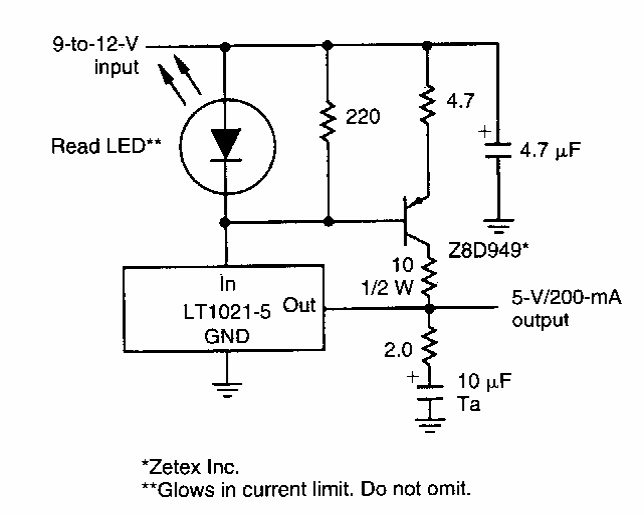

This power supply was obtained from an Electronic Design from the 90's. The circuit applies to other 3-terminal regulators. The maximum output current is 200 mA.
