Dual Voltage Reference (CB21541E)
- Details
- Written by: Newton C. Braga

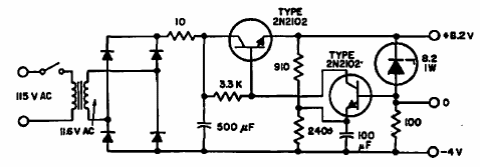

This circuit was found in RCA documentation from the 1960s. It supplies two voltages from a single transformer. The zener diode is 1 W and transistors admit equivalents.
